Products: Duplex Lube Oil Filter

we protect the fleet

Product Overview

Admiral's duplex lube oil filters provide uninterrupted flow during fluid transfer and cartridge changeout. Filtration of lube oil at flows up to 1500 GPM are standard. Higher flows are available, with system pressures up to 500 p.s.i.
Admiral's duplex lube oil filters are installed on hundreds of naval and merchant marine vessels worldwide, including frigates, destroyers and submarines, e.g. AD, AOE, LSD, AO, FF, AS, DDG, SSN, LHA, MCM, FFG, and DD class, US Navy ships, plus those of foreign navies.

Product Description

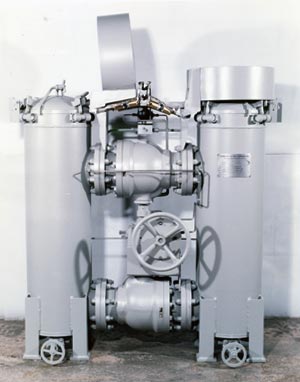

Two cylindrical housings are connected via inlet and outlet valves. The valves are linked by a common gear box with a hand wheel that allows selection of a clean housing without interruption of the oil flow. Oil enters the top of the housing, and particulates are trapped within the elements as the oil passes through. When a predetermined differential pressure is reached, changeover to a clean housing is accomplished, automatically or manually. The cover hold-down bolts and vent valve associated with the out of service housing become exposed and this allows the dirty filter elements to be cleaned or replaced without interruption of flow.


  • Fabricated construction gives flexibility
  • Indicator shows housing in use
  • Pivoting safety cover encloses closure bolts and vent valve of housing in operation
  • Equalizing valve closes automatically when unattended
  • Fail safe interlock prevents accidental changeover during element maintenance

Features cont.

  • Spray deflector welded to head/housing
  • Provides uninterrupted flow during fluid transfer
  • Accepts disposable or cleanable elements, or baskets without hardware modification
  • Minimum space for mounting and easy maintenance


Model: Duplex Filter, 6" NPS
Filtration Efficiency: 25 Microns Absolute
Specification: MIL-S-17849D, Type I, Class 8 except for C.S. welded construction & HH-P-96 gasket material
Flow Rate: 850 GPM @ 80 psig
Liquid Filtered: Lubricating Oil per MIL-L 17331
Operating Pressure: 10 psig maximum with 600SSU oil at 90°F
Hydrostatic Test Pressure: 90 psig
Clean Pressure Drop: 143 psig
Unit Height: 57 inches maximum
Unit Width: 59 inches maximum
Dim. Across Inlet & Outlet:  30 inches reference
Unit Weight, Dry: 1500 pounds estimated
Unit Weight, Wet: 1850 pounds estimated
Temperature Range: 40° to 180°
Material, Housing: Carbon Steel
Test Qualifications
Shock: MIL-S-901 Grade A Class I
Vibration: MIL-STD-167 Type I

Typical Aplications

  • Engines
  • Turbines
  • Compressors
  • Generators and other rotating and reciprocating machinery
  • Lube or Fuel Oil (Diesel or Turbine)
  • Sea or Fresh Water


  • Alarm Switches
  • Totally Automatic Changeover
  • Backflush or Self-cleaning
  • Differential Pressure Gauge
  • Differential Pressure Indicator
  • Inlet and Outlet Pressure Gauges
  • Various construction materials; Cupro Nickel, Monel,
    Stainless Steel, & Aluminum
